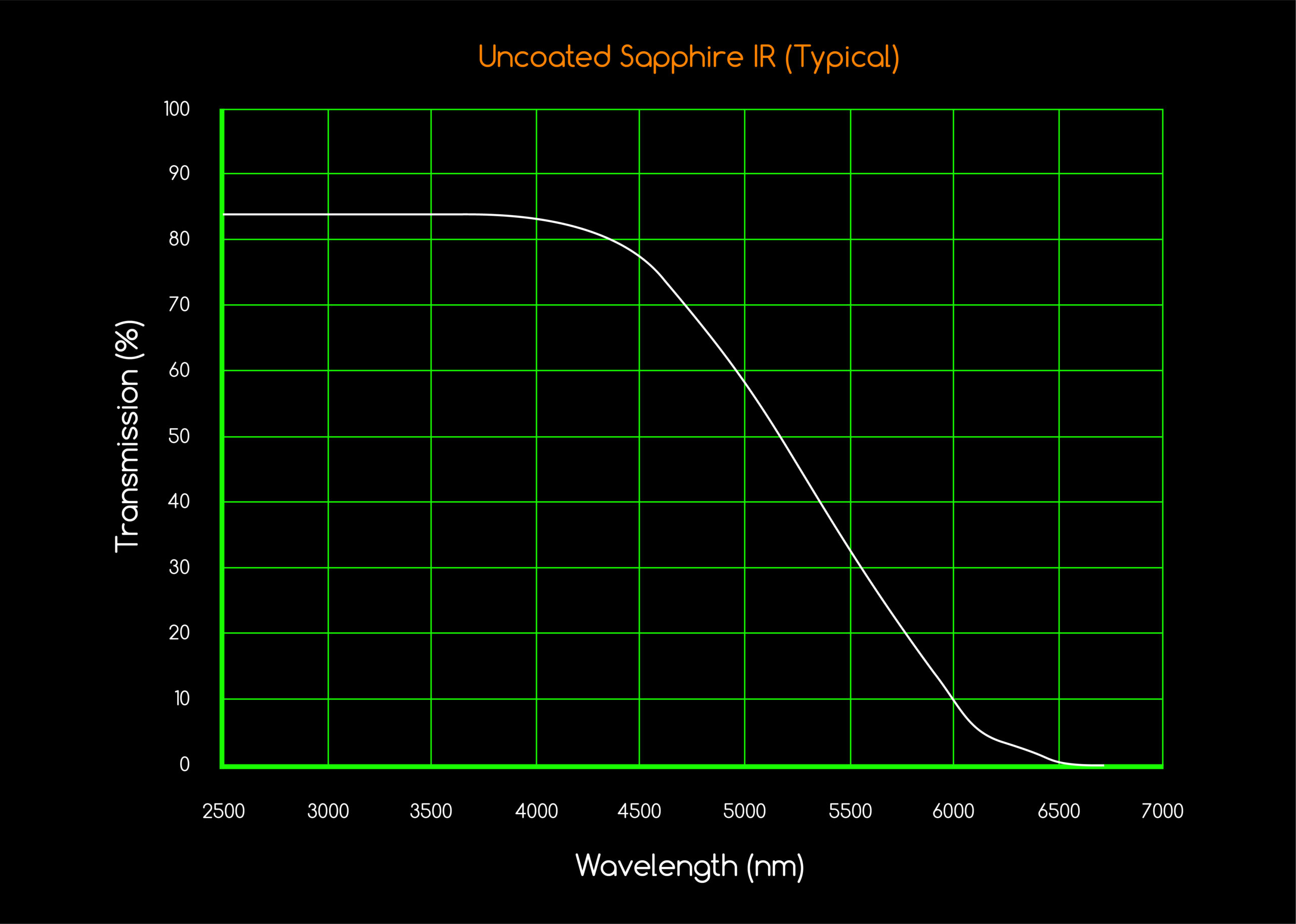

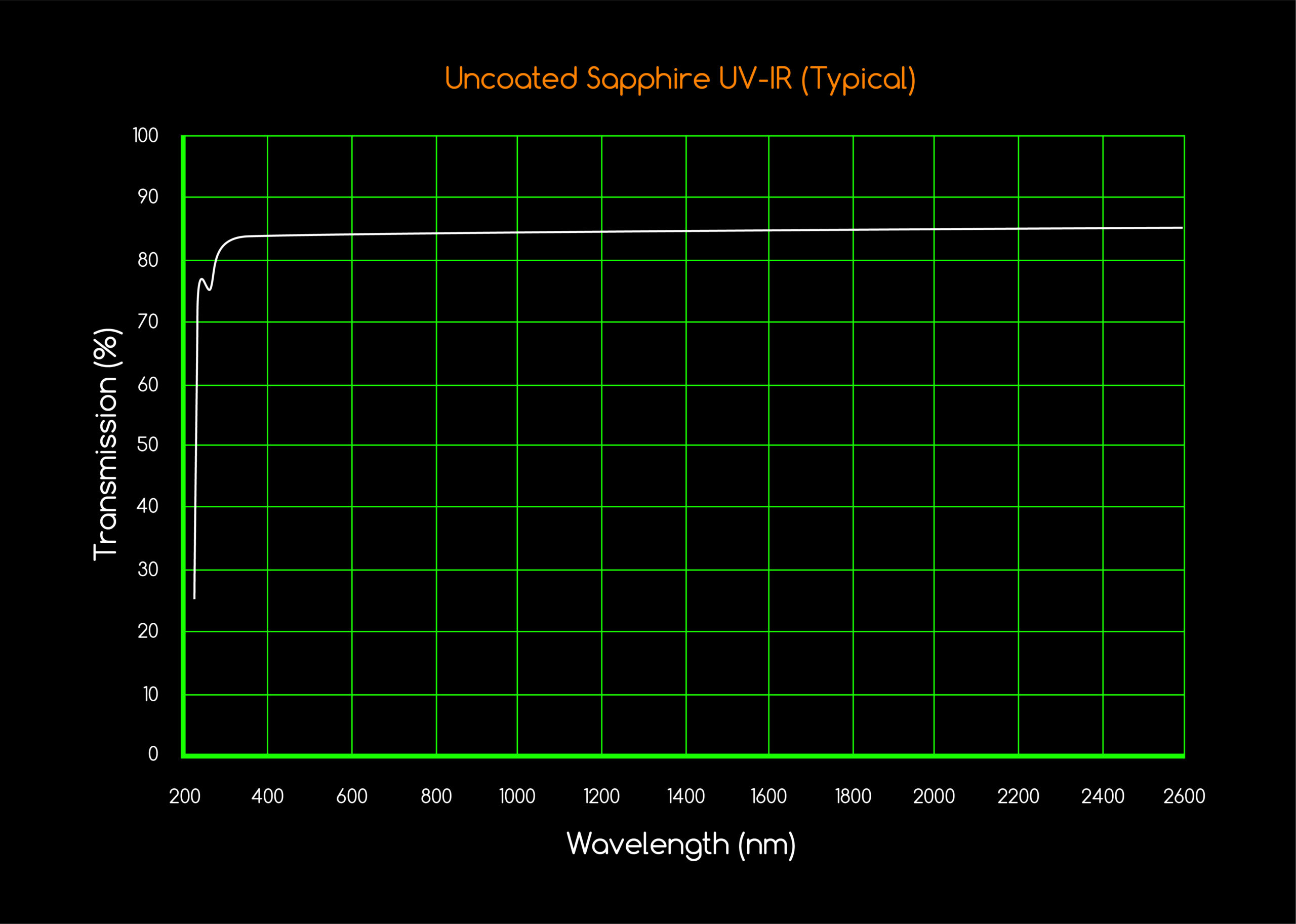

Sapphire has excellent mechanical and optical properties. It is extremely hard (9 on the mohs scale) and has a strength which is retained even at elevated temperature. In addition, it is resistant to virtually all forms of chemical attack. It has a transmission band which extends from the UV at around 180 nm, throughout the visible and near to mid infrared regions to 6500 nm.

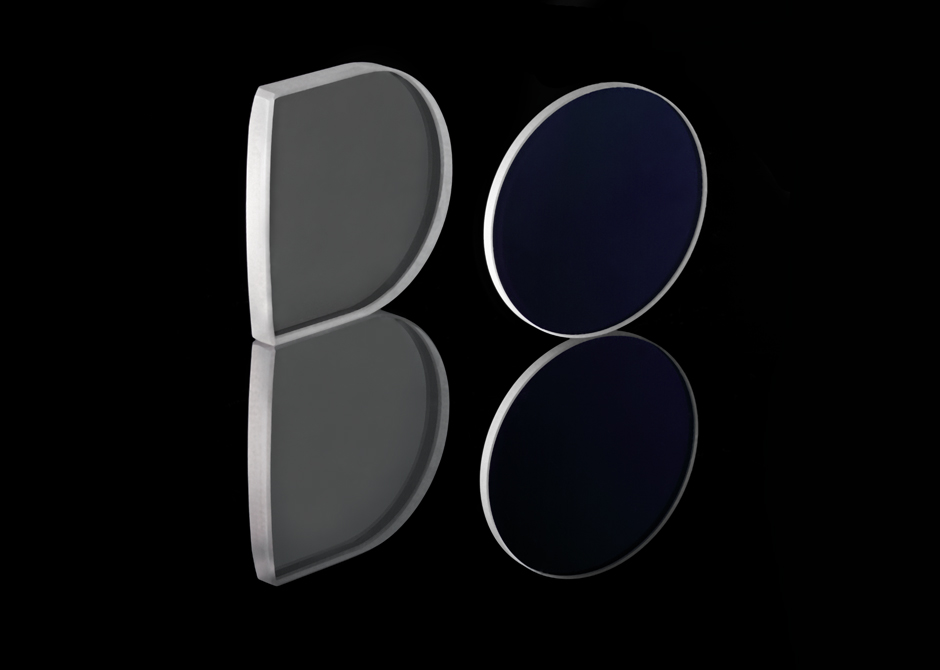

Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Sapphire |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/Dig | 40/10 |
| Bevel | Protective Chamfer |
| Coating | As Stated |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
