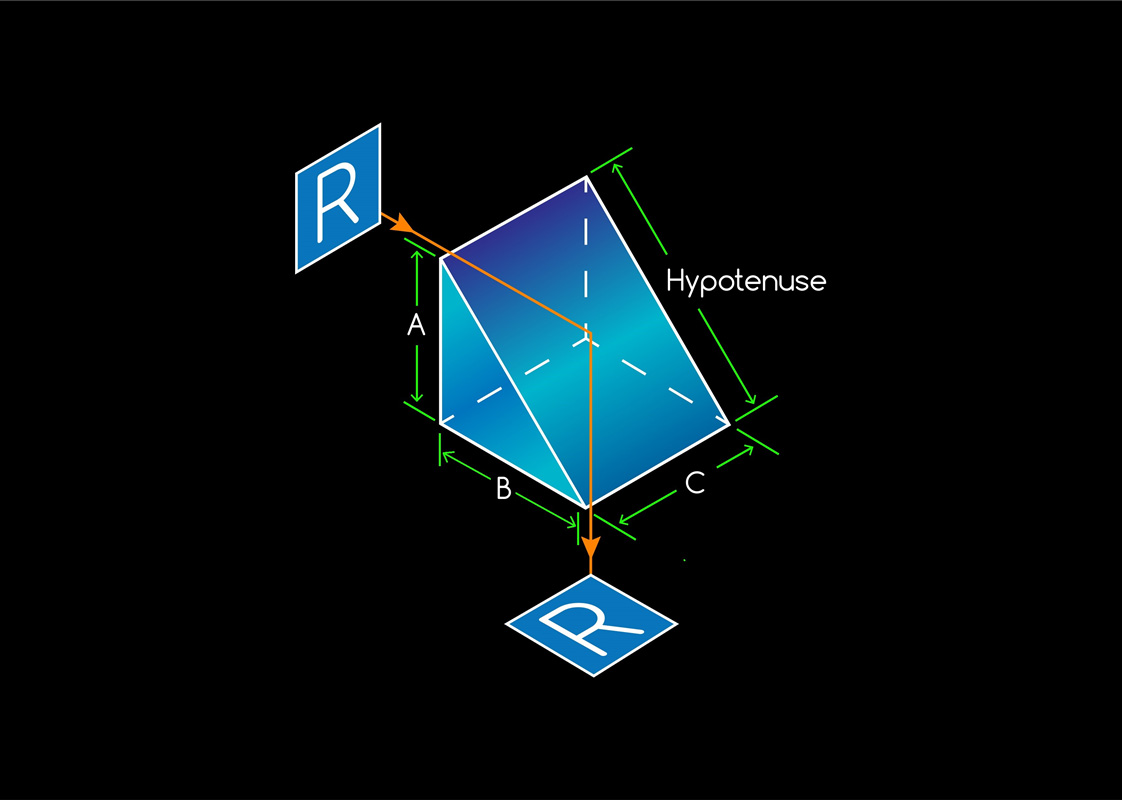

Right Angle Prisms are commonly used to bend light at a 90° angle. When a light ray entering through one of the prism’s legs hits the glass/air boundary of the hypotenuse, total internal reflection occurs and the reflected light exits through the other prism leg. Images are inverted, but correct left-to-right. Heli Optical Systems offers N-BK7 Right Angle Prisms with a mirror coated hypotenuse surface, and AR coating on the legs to reduce surface loss and optimize the reflection.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | N-BK7 |
| Dimension Tolerance | +0/-0.15mm |
| Angle Tolerance | ±2 Arc Minutes |
| Bevel | Max 0.3mm x 45° |
| Coating on legs | MgF2 |
| Hypotenuse | Enhanced Aluminium |
| Note | Black Protective Paint on Hypo |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
