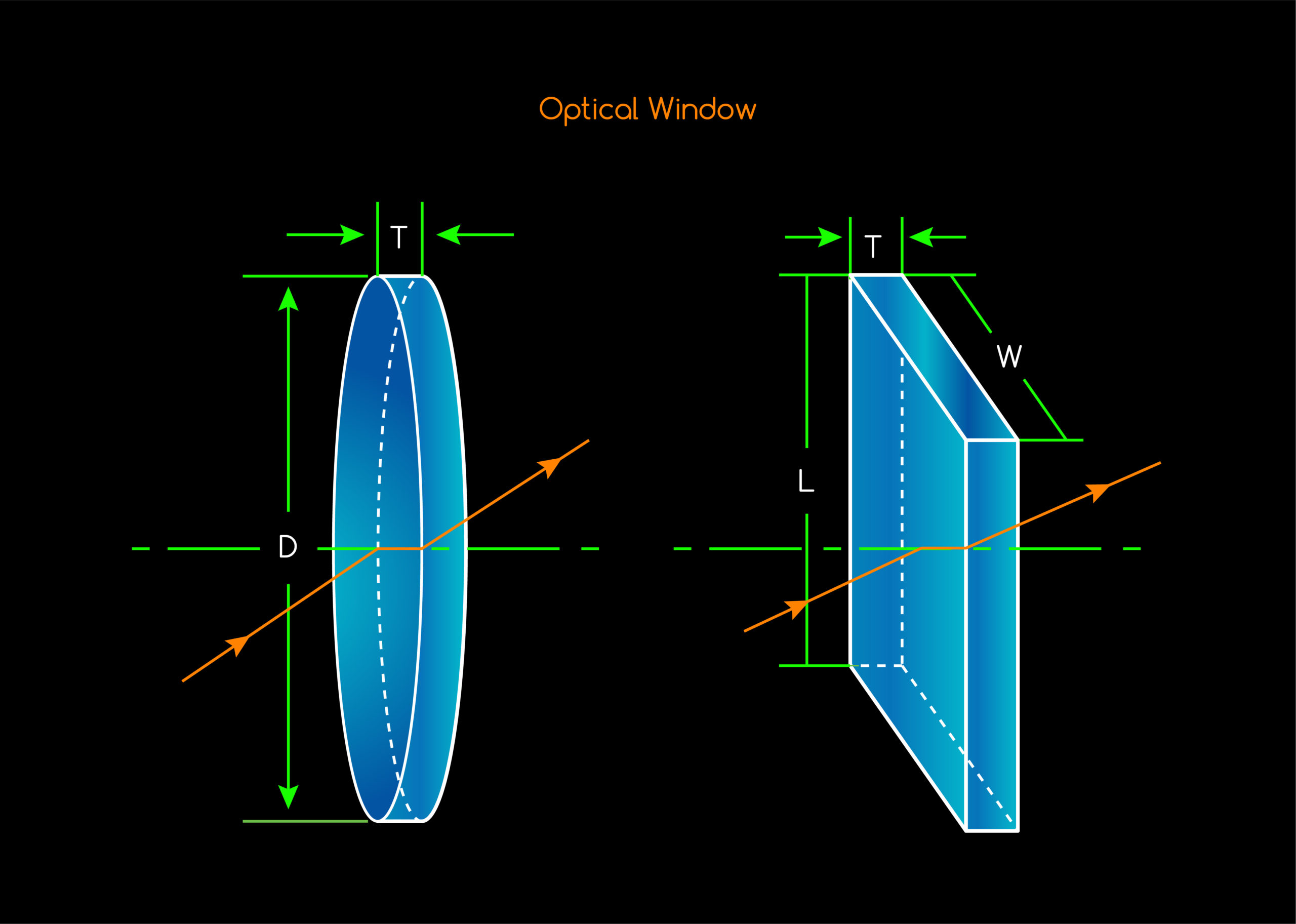

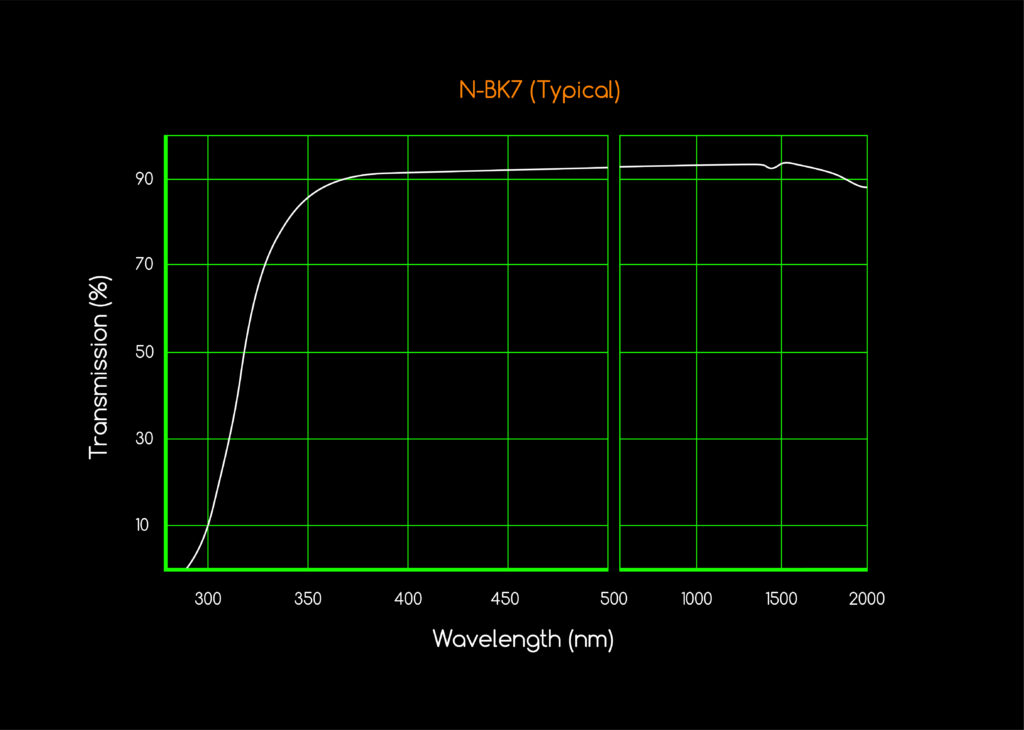

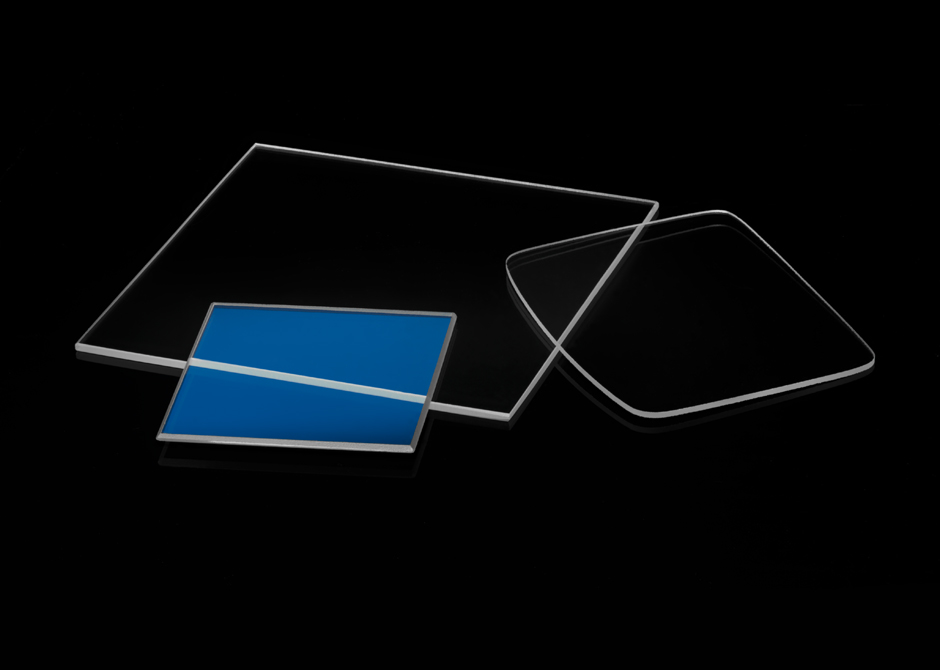

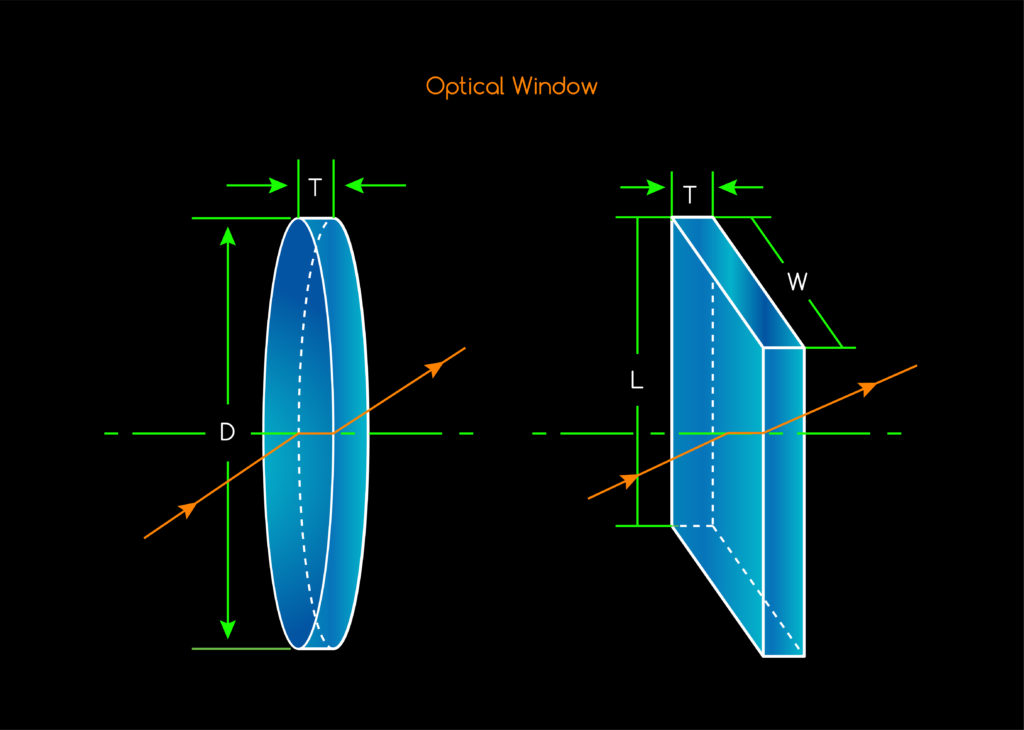

N-BK7 is a pure optical borosilicate-crown glass material. It’s characteristics makes it a good choice for window, substrate or wafer. Its transmission range is useful for the visible spectrum and near IR. Used to protect elements and optical enclosures between two environments, N-BK7 windows are available in a wide range of sizes and thicknesses.
The “N” indicates this glass is an environmentally friendly alternative to conventional lead and arsenic-containing glass types.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | N-BK7 |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/Dig | 60/40 |
| Bevel | Protective Chamfer |
| Flatness | 4λ per inch standard, ¼λ per inch upon request |
| Coating | As specified |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
