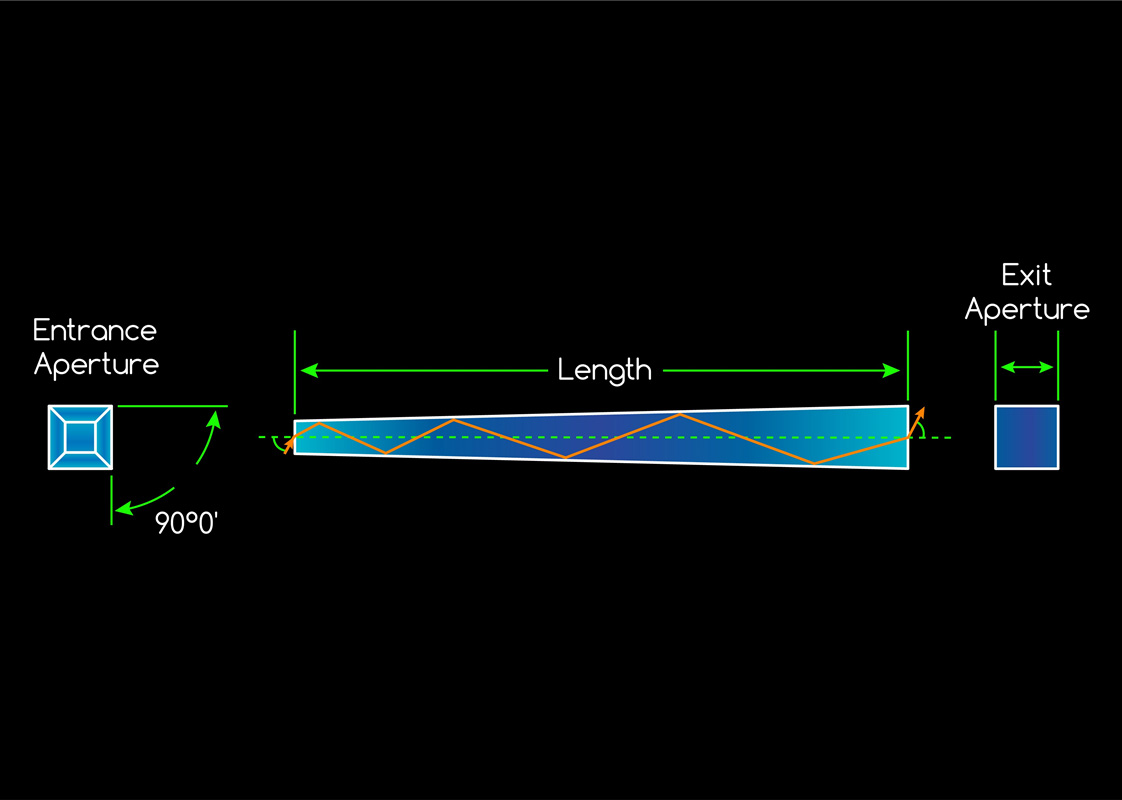

Heli Optical Systems offer light pipe homogenizing rods in tapered, straight and round designs. Our light pipes are available in N-BK7, Borosilicate and Fused Silica, so as to cover UV, VIS and NIR applications. Light pipe homogenizing rods make use of internal reflection to transform the output of a non-uniform light source into uniform or homogenized illumination. High precision requirements of sharp edges with no or minimal bevels upon request.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | N-BK7, Borosilicate or Fused Silica |
| Dimension Tolerance | +/-0.1mm |
| Angle Tolerance | ±15 arc seconds |
| Bevel | Max 0.4mm x 45° |
| Coating | Available upon request |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
