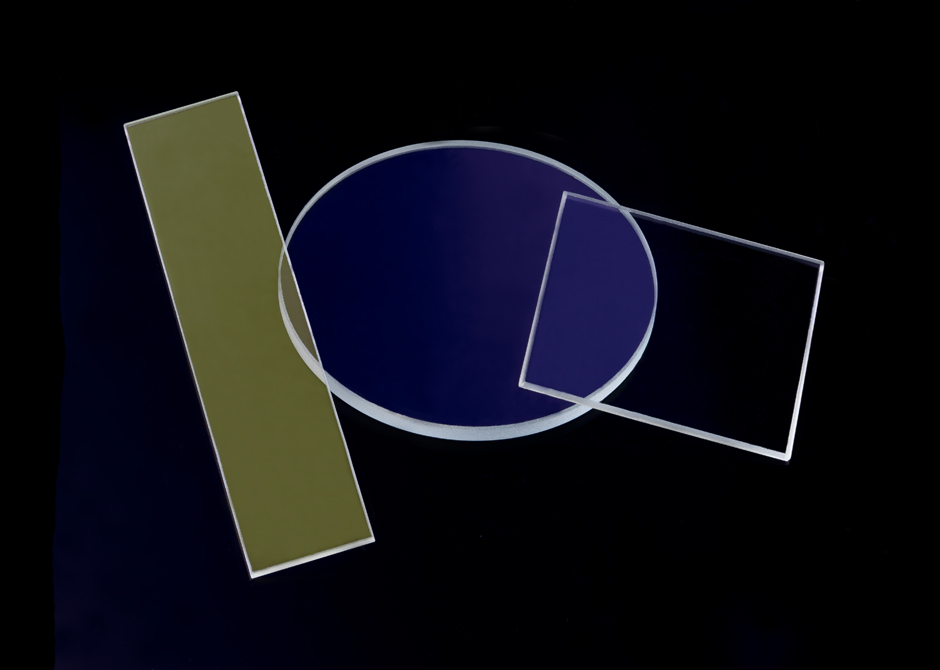

Heli Optical System’s VIS-BBAR Windows are optically polished glass windows with a high efficiency broadband anti-reflection coating designed for maximum transmission throughout the visible spectrum
For comparative purposes, an uncoated glass window with negligible absorption losses only transmits approximately 92% of the light due to reflection loss (4% reflection loss from each glass/air surface). Our VIS-BBAR coating reduces reflection loss to less than a 0.5% average from 425-675nm per surface, resulting in superior light transmission.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Optical Glass |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/Dig | 60/40 |
| Bevel | Protective Chamfer |
| Coating | BBAR coating for visible =/< 0.5% |
| If your requirement is outside of our listed specifications, please inquire as our production facility can quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
