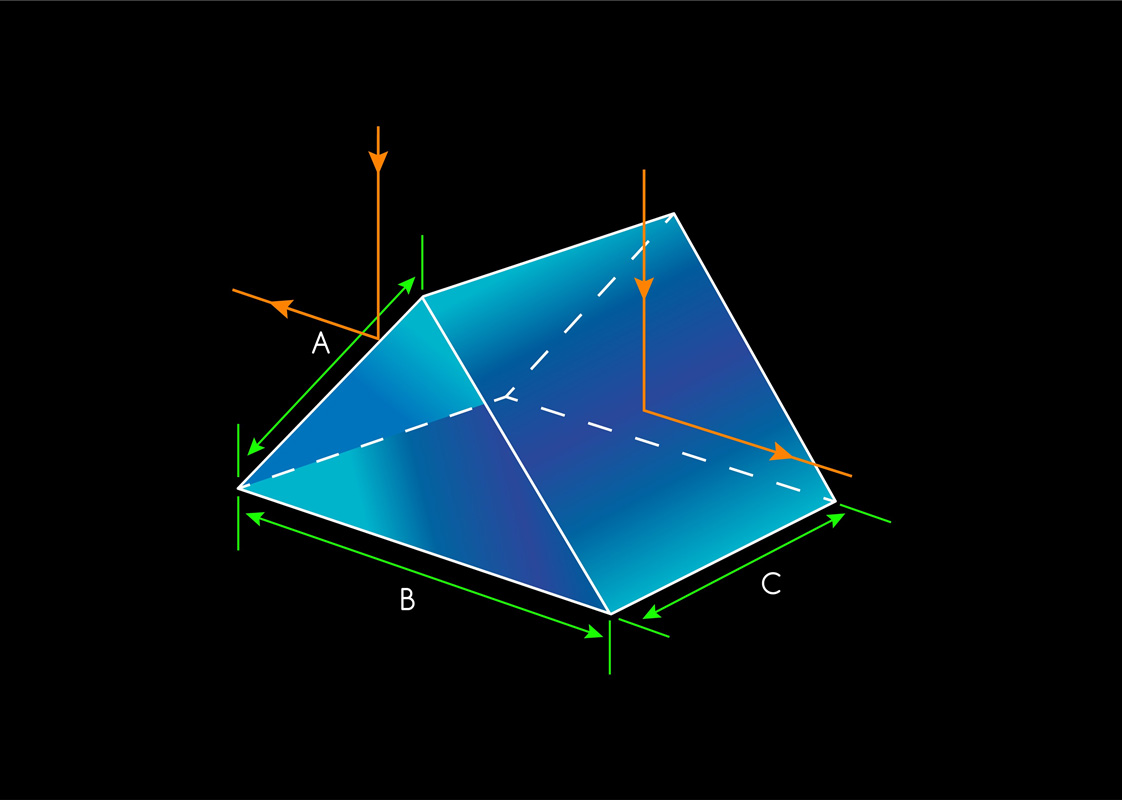

HeliOS’ Dual Image Right Angle Prism is fabricated with an enhanced aluminum mirror coating on both legs of a right angle prism. With two mirrored surfaces at a 90°, this prism can be used for applications requiring a split or combined image, and are easily mounted into optical systems.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | N-BK7 |
| Dimension Tolerance | +0/-0.15mm |
| Angle Tolerance | ±3 arc seconds |
| Bevel | Max 0.3mm x 45° |
| Coating on legs | Enhanced Aluminum |
| Hypotenuse | Ground |
| Note | Some versions bonded |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
