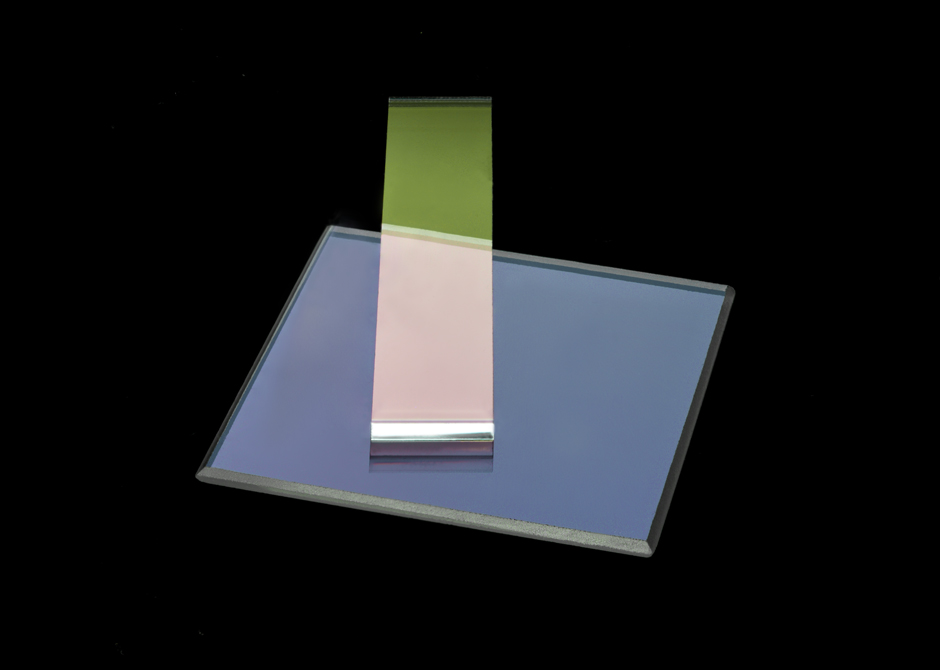

This thin borosilicate glass is the gold standard in camera imaging thanks to its high optical precision. Manufactured with eco-friendly refining agents, D 263® T eco has high chemical resistance and a fire-polished surface, and is available in a variety of thicknesses from 1.1 mm down to 0.03 mm to enable miniaturization.
CHARACTERISTICS
D 263® T eco offers a wide thickness range allied to extremely high thickness tolerances, low TTV (total thickness variation) making it a versatile product for adaptation to future product miniaturization.
ADVANTAGES
– A highly effective substrate for a wide range of coatings (AR / IR-cut filter).
– High optical precision results in outstanding camera imaging.
– Robust chemical resistance means it’s able to perform in harsh environments.
– Manufactured with environmentally friendly refining agents instead of arsenic and antimony.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | D263® T eco |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.1/-0.1mm |
| Scratch/Dig | 60/40 |
| Bevel | Protective Chamfer |
| Coating | As specified |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
